Out Look for Bio Fuels- a Japanese Perspective
November 9, 2006 Energy and Environmental Design Co., Ltd.
Koichi Kato, Ph.D.
Contents
1.Current Status in Japan
2.Major Discussions
3.Technology,
Environment and Economics
4.Future Prospects
5.Conclusions
Current Status in Japan
Energy demand by type
Dependence on Gasoline and Diesel

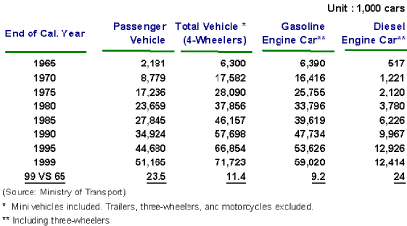

Number of Vehicles in Use

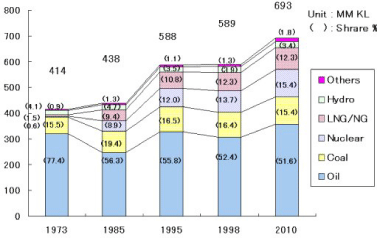

Primary Energy Supply

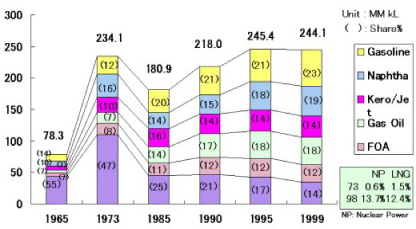

Change in Domestic Demand for Oil Products
Number of Vehicles in Use

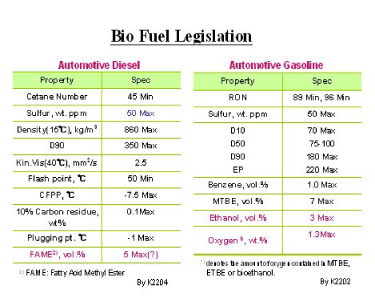

Bio Fuel Legislation
Current Status and Outlook in Japan
Ethanol
Current Status of Ethanol in Japan
Less production of Ethanol in Japan: 350,000Kl/Y
･Government seems to promote Ethanol application.
･ Financial Support for Sugar Cane Production
･ Targeted Mixing Ratio is 10% (now 3%)
･ Preparation of Mixed Fuel Supply network
･ Looking for better technology and possible
Feedstock
Major Discussion on Ethanol in Japan
Availability: Ethanol 1,800,000Kl needed in case E3
with 60,000,000 Kl/Y of gasoline consumption
･Economics: import from Brazil ?
Ethanol price : 50yen/l or higher(2004）
･Technological: effect on distribution
phase separation
RVP adjustment
filling machine corrosion

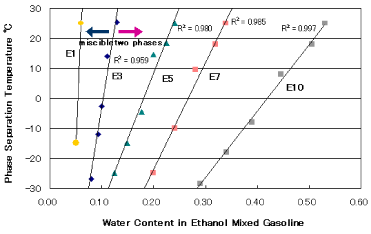

Phase Separation Temperature vs. Water Content in Gasohol

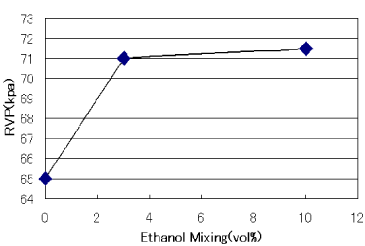

Vapor Pressure Raise by Ethanol Mixing to Gasoline

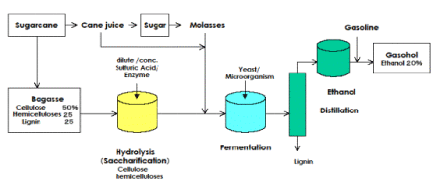

Sugarcane to Gasohol
図
Co2 Emission Reduction Effect of Gasohol
Government's drive for Ethanol
･Technical Guideline for Gasohol Car
･Tax Exemption for Ethanol Portion
･Targeted Mixing Ratio is 10% (now 3%)
･Financial Support for Sugar Cane Production
･Preparation of Mixed Fuel Supply network
･Supporting Local Realization Program

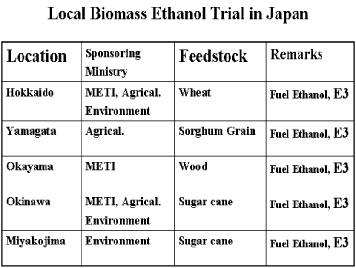

Local Biomass Ethanol Trial in Japan

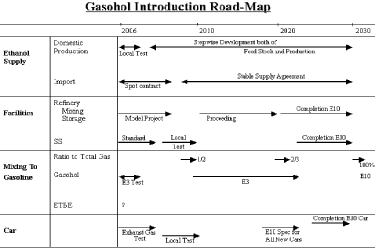

Gasohol Introduction Road-Map
Conclusions (1) Ethanol in Japan
Government seems to promote Ethanol application
mainly because of KP. Target is 500,000Kl in 2010.
Mixing Ratio to gasoline is 3% (then 10%)
Small production in Japan because of almost no
feedstock. Ethanol import from Brazil needed.
Bio-Ethanol local area is planed for realization.
ETBE also being planed.
Governmental plan may have some delay.
Current Status and Outlook in Japan
BDF
Current Status of BDF in Japan
･Production of 2,000Kl from used vegetable oil.
Used BDF 100% with tax exemption.
･Shortage of feedstock for BDF in Japan
･Government is pushing BDF slowly mainly
because of KP. Targeted Mixing Ratio is 5%
･Private sector plans to import BDF to Japan after
producing in Asia with their feedstock.
Major Discussion on BDF in Japan
･Availability: BDF 2,250,000Kl needed in case B5
with 45,000,000 Kl/Y of Diesel consumption.
･Economics: import ? from Asia? BDF or Feed ?
BDF price : 75yen/l or higher(2004）
･Tax: exempt only B100
･Technological:
Usage: Car makers have concerns because of low grade of BDF.
Production: Spot (small sized) production may be needed.

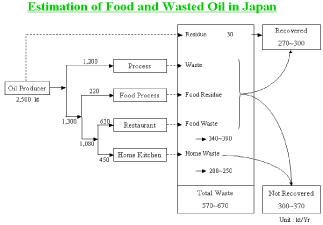

Estimation of Food and Wasted Oil in Japan

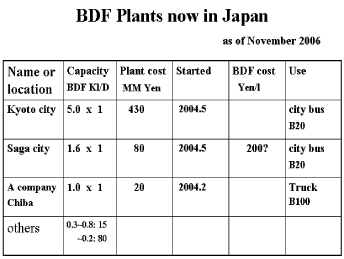

BDF Plants now in Japan
as of November 2006

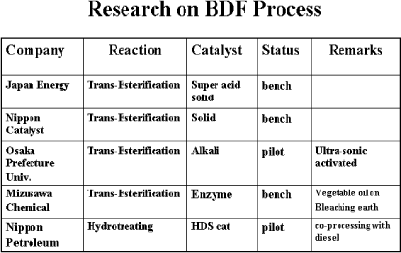

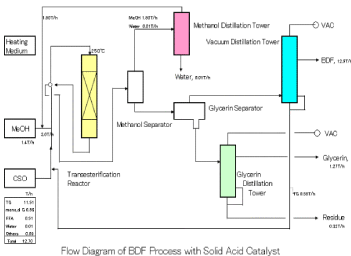

Research on BDF Process
Government's drive for BDF
･Technical Guideline for BDF Car
･Tax Exemption for BDF Portion
･Financial Support for Production
･Targeted Mixing Ratio is 5% (then 10%)
･Financial Support for Research (NEDO)

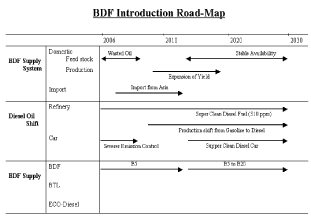

BDF Introduction Road-Map

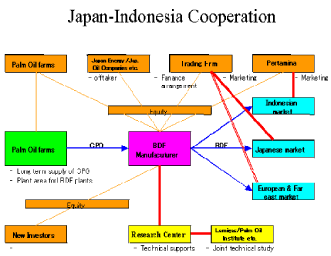

Japan-Indonesia Cooperation

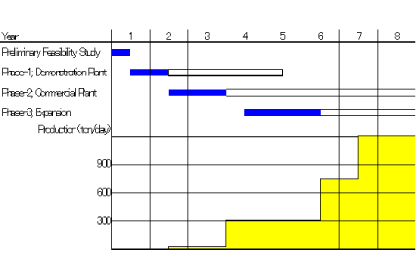

Tentative Schedule

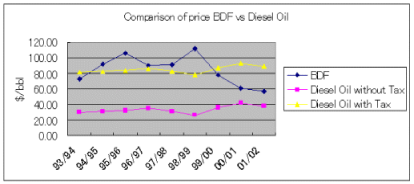

BDF Marketability in Japan
BDF non-marketable with tax
BDF marketable in some time (year 2000 and after) if tax exempt
Conclusions (2) BDF in Japan
･Government promotes BDF introduction because of
KP but less than Ethanol. Target is B5 in 2010.
･Small production (2,000Kl) in Japan from wasted oil.
Difficult for expansion because of no feedstock.
･BDF(or feedstock) import from Asia needed.
･Private sector plans production abroad and import.
･Technology for small sized BDF plant may need.
･Introduction of BDF will come slowly.
